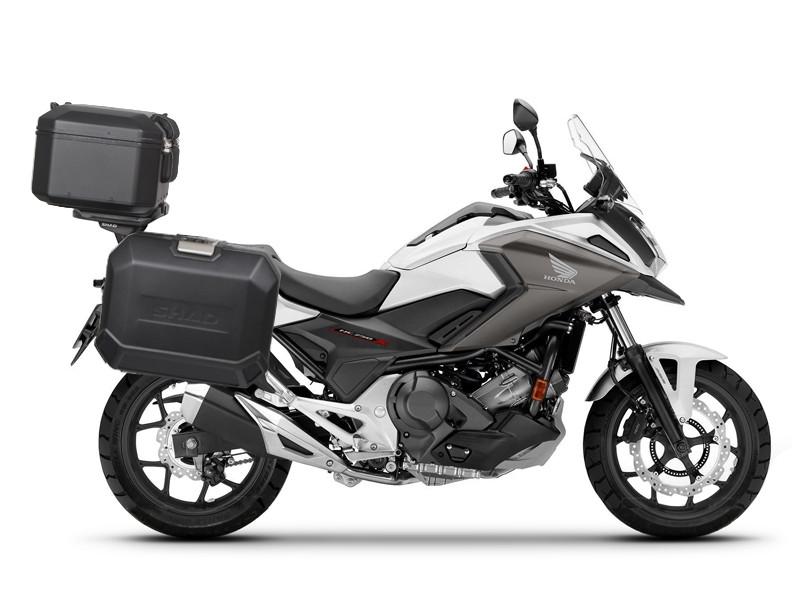

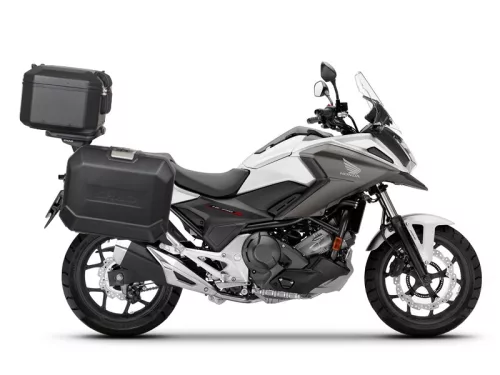

The complete set of cases SHAD TERRA BLACK includes black aluminum top case TR48 with a capacity of 48L, black aluminium left and right case TR36 with a capacity of 36L due to the location of the exhaust. The set contains everything you need to mount both suitcases to the motorcycle.
The black TR48 is an aerodynamic case with a smoothed profile and integrated structural design elements.
Featuring a full aluminum body with stamped logo together with external tiedown hooks for extra load and inner mat for protecting gear, the TR48 is versatile, strong and secure.
Every TR48 incorporates a fully waterproof system, made possible by a double profile rubber edge gasket, sealed by the integrated compression handle.
The TR48 also features a unique double locking system with high grade AISI 304 stainless steel.
Single hand operation: quickly open, close, lock, lock in place and remove with just one hand.
Features
- 48 Litre Capacity
- 1 Open Face Helmet
- 10kg Maximum Load
- Fully Waterproof
- Impact Resistant
- Fully Lockable With the AISI 304 Stainless steel locking system
- Simply Removed From Motorcycle With Box Specific Key
- Lightweight and Aerodynamic
- External tiedown hooks for extra load and inner mat for protecting gear
- Designed in Barcelona
Dimensions
- Width: 49.5cm
- Height: 32.2cm
- Depth: 41.8cm
The SHAD Terra Black TR36 pannier is made from forged aluminium alloy, a stronger and lighter type of aluminium which allows the case to be thinner and lighter but just as strong as heavier cases. The Terra Black TR36 is finished with scratch resistant black powder coated paint.
Fully waterproof and lockable, the TR36 is a perfect choice for touring and commuting. Coupled with its 10kg load capacity, this makes it an industry leading pannier.
The unique integrated lock and handle mechanism allows simple, one handed operation of the premium lock and removal from the bike.
SHAD Terra panniers are designed to be used with the new 4P pannier mounting system and once mounted, offer a side opening system which gives easy and full view to all your belongings whilst keeping them in place with the parcel tray (which folds out of the way) and mesh restraint system.
All right hand panniers are supplied with 2 spare lock barrels allowing the exchange with up to 2 other Terra cases to give a 1 key system to open all your luggage.
Features
- 36 litre capacity
- 10kg load capacity
- AISI 304 industrial grade stainless steel structure
- ABS plastic case guards to protect from impacts
- Integrated reinforced carrying handle
- Fully waterproof
- Patented integrated double locking system.
- Retractable inner tray
Dimensions
- Width: 42cm
- Height: 49cm
- Depth: 28cm
SHAD 4P fitting kits are designed to be compatible with SHAD's TERRA Aluminium range and are additionally backwardly compatible with the SH35 and SH36 panniers.
The SHAD 4P system is a more traditional rectangular shape and the fitting kits afford 4 points of pannier fitment, ensuring the panniers are secured firmly to the bike and giving you best load stability.
With Terra panniers being able to carry up to 10kg each, the 4P pannier kit includes a slim brace bar across the rear of the bike to eliminate any lateral flex and remove any associated vibration.
- Easily mount / dismount your panniers
- Manufactured in Barcelona
- Comes pre-drilled and ready to fit
- 2 year manufacturers warranty included
- Includes full instructions to ensure easy fitment
